Mounting Strip Profile, 3 × 40 × 2000 mm
Perforated steel strips and formed profiles are designed for manufacturing various structures during electrical installation work.

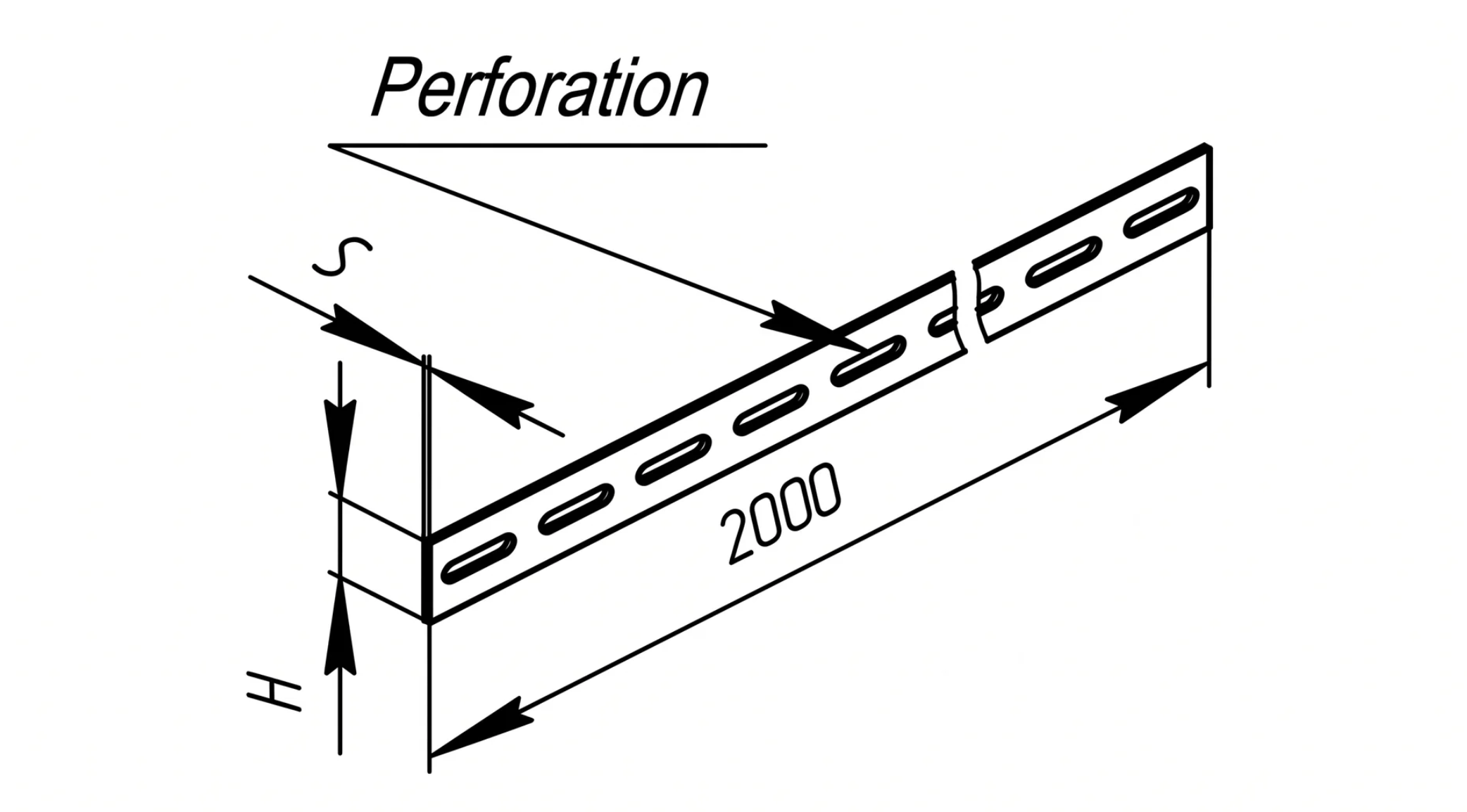

The general view and overall dimensions are provided in the Diagrams/Drawings and Technical Specifications tabs.
price on request
Legend
Description
Schemes / Drawings
Specifications
Protective coating: GF-021 primer. Upon request, a paint coating (PF-115, grey) or a powder-polymer coating (RAL 7032, light grey) can be specified.
Climatic version: U2 in accordance with GOST 15150.
| Type | Dimensions, mm | Weight, kg | ||
| S | H | Perforation | ||
| K 107 (PP 40) | 3 | 40 | 9 × 36 | 1.62 |
